Quick Details
| Size | Inch | 1/8 | 1/4 | 3/8 | 1/2 | 3/4 | 1 | 11/4 | 11/2 |
| mm | 6 | 8 | 10 | 15 | 20 | 25 | 32 | 40 |
Dim.
(mm) | A | 17.5 | 20.6 | 24.1 | 28.5 | 33.3 | 38.1 | 44.5 | 49.3 |
| Size | Inch | 2 | 21/2 | 3 | 4 | 5 | 6 | 8 | |
| mm | 50 | 65 | 80 | 100 | 125 | 150 | 200 | |
Dim.
(mm) | A | 57.2 | 68.6 | 78.2 | 96.3 | 114.3 | 130.3 | 162 | |
Detailed Product Description
We are manufaturer of malleable iron pipe fittings about 24 years, we seized each opportunity to consolidate its strength, and has finally developed into what it is tody, a large-scale enterprise group with advanced technology, equipment and strong comprehensive strength,knows for its complete ranges of products, large producing capacity,high quality, etc.
We imported full automatic produce-lines from DISA Denmark ,DJ and SINTOKOGIO Japan on malleable iron elbow making and quality ensuring .
The spectrometer of Oxford Instruments we bought for analyzing the quality of malleable iron samples.
In order to improve material physical characteristics ,we set a higher heating value gas furnace to control the annealing process strictly .
we use close-grained, high strength, impeccable steel & plate scrap as the raw material, because the quality of the steel is the starting point of the fittings of excellent quality.
Take “six check + two inspect +one examine” measures, using Germany made FOUNDRY-MASTER Xline to check each pack of liquid iron’s chemical composition , ensure low defect rate and stable product quality .
Scopes
| Material | Malleable iron |
| Standard | Thread: ISO 7/1 |
| Dimension | ISO 49, DIN 2950,EN10242 |
| Chemical property | (C %2.4-2.9), (Si %1.4-1.9), (Mn %0.4-0.65), (P% <0.1), (S% <0.2%) |
| Physical property | Tensile strength>=350Mpa,Elongation>=10% Hardness<=150HB |
| Testing pressure | 2.5Mpa |
| Working pressure | 1.6Mpa |
| Type | Beaded with ribs or banded with ribs |
| Beaded without ribs or banded without ribs |
| Round/square |
| Surface | Galvanized/ no galvanized |
| Color | White/black |
| Model | Elbow, Tees, Crosses, Bends, Unions, Bushings, Lateral Braches, Sockets, Nipples, Hexagon/Round, Caps, Plugs, Locknuts, Flanges ,Side Outlet Tees, Side Outlet Elbows and etc |
| Connection | Male, Female |
| Shape | Equal, Reducing |
| Certificate | BSI,ANAB,ISO9001,FM,UL |
| Application | Suitable for pipe connect of steam, air, gas, oil and so on |
| Buyer’s drawings or designs are available |
| Package | Cartons without pallet |
| Cartons with pallet |
| Double woven bags |
| Or as buyer’s requirements |
| Delivery details | According to the quantities and specifications of each order |
| Normal delivery time is from 30 to 45 days after receiving the deposit |
Product Tags:
|
|

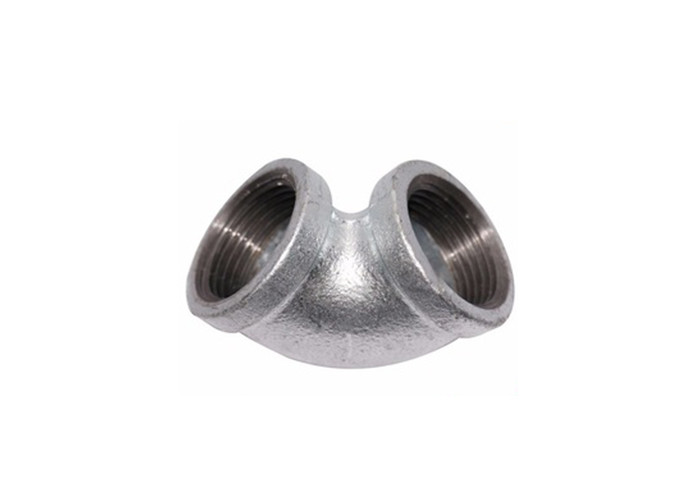

Zinc Coated A105 90 Malleable Iron Elbow 1 2 Inch Galvanized Pipe Fittings Images
|
